Current Position:Home > Product > GZGSR STAINLESS STEEL CIRCULATION DYEING DRUM


GZGSR

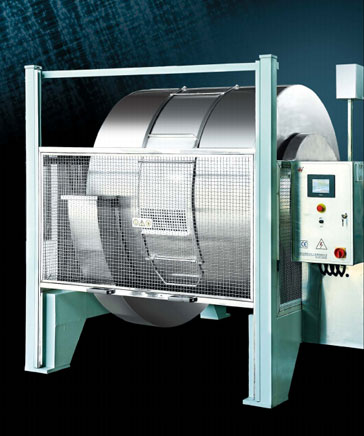

GZGSR STAINLESS STEEL CIRCULATION DYEING DRUM
APPLICABILITY

It is applicable to the preparatory stage and tanning period for the hides of pig,ox and sheep,especially useful for the dyeing process.

MAIN CHARACTERISTICS

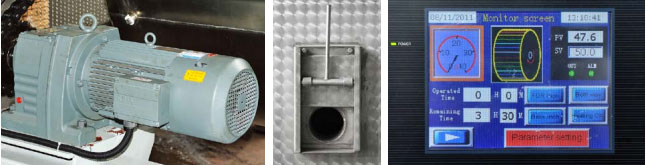

1、It is equipped with the automatic heating medium circulation unit.
2、It has the function of positive,reverse and single-direction rotation according to preset time.
3、It is available of frequency conversion speed regulation for different technological requirements.
4、The temperature can be automatically controlled with precision.
5、The product has the CE safety certificate.



TECHNICIAL PARAMETERS
Model & Size GZGSR-
150×100
GZGSR-
180×120
GZGSR-
200×150
GZGSR-
220×150
GZGSR-
250×200
GZGSR-
300×250
Diameter of drum mm 1500 1800 2000 2200 2500 3000
Width of drum mm 1000 1200 1500 1500 2000 2500
Thickness of insulating layer T mm 25 30 40 45 50 55
Volume of drum 1.35 2.45 3.9 4.64 8.19 15.15
Loading capacity kg 120 220 350 420 740 1360
Drum speed rpm 10-22 9-21 8-20 7-19 6-18 5-10
Motor power kw 4 5.5 7.5 7.5 11 15
Door size mm 400×450 400×450 500×600 500×600 600×650 850×850
Outline dimension(Length) mm 2400 2600 2950 3150 3650 4200
Outline dimension(Width) mm 2400 2600 2900 2900 3400 3900
Outline dimension(Height) mm 2700 2850 3000 3100 3500 3500
Total weight t 1.8 2.1 2.3 2.5 4 5
